My 2.5 year old grand-niece loves jigsaw puzzles. I thought it would be a nice to make a custom puzzle for her using a photograph of people she knows.
Here’s how I did it.
My approach was to take a photograph, glue it to a substrate and laser cut it into interlocking puzzle pieces. I’ve seen my niece assemble 25-piece puzzles, so I wanted to keep the total number of pieces to about that number. The pieces need to be an appropriate size to fit her little fingers. Combining this with the 25+/- constraint, I decided to order an 8×10 print and to cut it into a 5×4 matrix. Twenty pieces is a little light on piece count but it matches the aspect ratio of the photo.
Puzzle pieces need to be sturdy. Simply cutting the photo into pieces wasn’t satisfactory. The pieces need a stiff backing. I considered three materials — 1/16″ basswood sheet, acrylic, and heavy card stock. I ran test cuts on all three materials. I printed three 5×6 test photos and used Locktite 300 spray adhesive to glue the photos to each of the above materials and let them cure overnight. Then I covered the photos with blue painters tape to prevent charing of the photo. It’s best if the width of the tape is LESS THAN the size of a puzzle piece. The 300 adhesive helps ensure that the photo does not separate from the substrate either during the cutting process or when removing the blue tape.
The first material I tested was the card stock. I’d picked up some mat board typically used for picture framing. I cut a series of 1″x1″ squares through the tape, photo and substrate with various laser settings. The best setting seemed to be 10% speed, 100% VC, 100% power and 2 passes. The pieces cut very cleanly. The edges of the square were darkened, but the backside only had a little bit of soot and the blue tape completely protected the photo. The next test cut was a single, 2″x2″ jigsaw-puzzle-shaped piece. I found and downloaded a vector image of a single puzzle piece. It printed beautifully. The stiffness was perfect — just like a commercial puzzle — and fit well when dropped back into the hole left in the test material. I didn’t bother test cutting the other materials.
Finding a 5×4 vector jigsaw puzzle template for the production run was more difficult. I found plenty of .jpg images, but converting them to vectors for cutting exceeded my Inkscape skills. I ended up buying a collection of 13 templates in .svg format on ETSY for $2.50.
For the production run, I printed an 8×10 image and glued it to the mat board. In Inkscape, I opened the 5×4 puzzle template and sized it to 7.5″x9.5″ — slightly smaller than the image. I colored the interior lines blue and the outline red. The plan was to cut the blue first and the red last. This way, the pieces would stay together until the outer perimeter cut through. I added a second layer to the bottom of the layer stack, imported the original .jpg that I had printed and resized it to 8×10. With the two layers superimposed, I made whatever subtle changes were necessary to ensure the best placement of pieces within the boundaries of the photo. Once satisfied, I turned the background/photo layer off and sent it to the laser.
Surprisingly, the settings from the test cuts failed on the production run and I ended up using speed 30% and 3 passes. Once cut, I took each piece out of the laser one at a time, stripped the blue tape and reassembled the puzzle to ensure all pieces fit nicely.
When stripping the tape, there’s always the risk of pulling up the photo as you scrape along the edge of the piece trying to get a foothold to pull. By keeping the width of the tape small, you can ensure that the center of the piece with have two strips of tape overlapping each other.
It’s far easier to scrape at that seam to get started. Once the first one strip of tape is removed, it’s easy to start the second by scraping across the flat, center surface of the puzzle piece instead of along the edge of the piece.
Here is the final result.
I did eventually test cut the other materials. The 1/16″ basswood was sturdy, but a little thin. The acrylic was beefy thick, but light and strong.
Here are the details of the mat board purchased from Michael’s:
I’m a new maker. It started simply enough – Raspberry Pi Zero W, DHT22 temp sensor, SD card, power supply. But it was not long before my appetite for new projects and more components grew. I bought LEDs, resistors, jumpers, DIP switches, camera, heat shrink, POTs, PIR, servos, steppers, … ENOUGH! I had a monkey on my back. But, what to do?

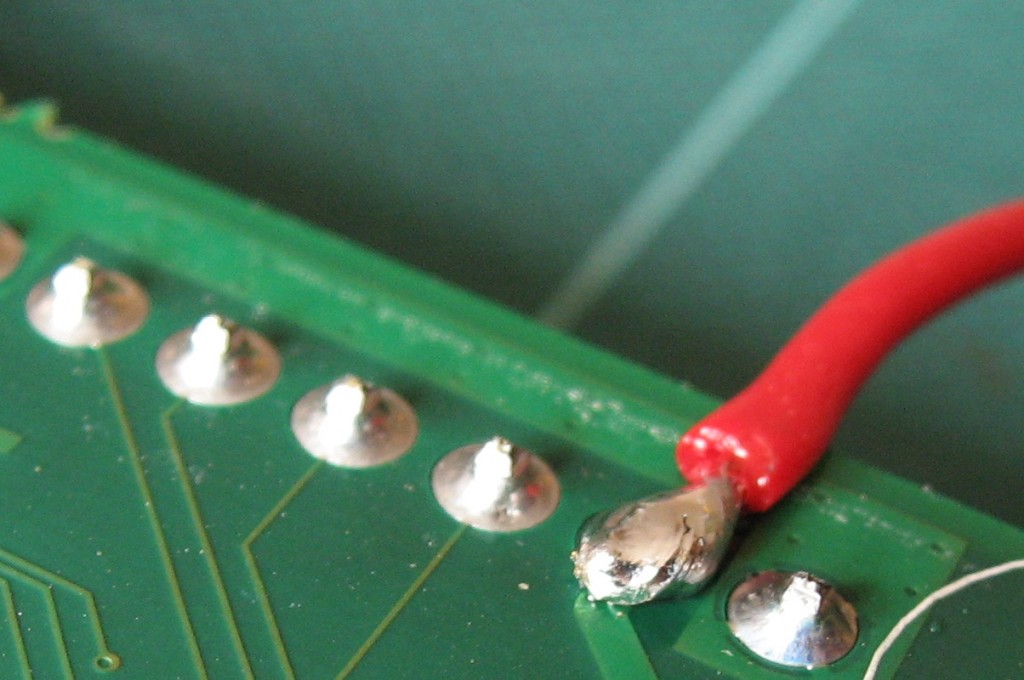

I eventually got to a point that the project I was building required soldering. Let me think — I’ll need one hand for the left wire, one hand for the right wire, one hand for the iron, one hand for the solder. A quick inventory of appendages led me to conclude that I needed an extra hand (or two).
Amazon to the rescue.
Now you’re talking. Clearly, I gotta have at least one of these. Right? Well, maybe not! I had just been in our laundry room and noticed we still had a box of wooden clothes pins. They’re kinda like the alligator clips on the Helping Hands. Surely they could be used to hold onto stuff.
But I couldn’t just lay the pins on the workbench. So I rummaged for a bit longer and found a discarded hinge from an old door. When opened to its fullest, the plate stands at a 50 degree angle. A little hot glue and I had all the helping hands I needed — for next to nothing.
How about that! I made, not bought, something to help me make something else.
Here’s the bottom line. Do I need a Helping Hands? No, not right now. Am I going to buy one? HECK YEAH — that thing is awesome looking.
This method builds on the Norton White Tile Method (NWT) which fundamentally has been based on using Titanium Dioxide (TiO2) in white paint products to create indelible markings on the surface of tiles. The principal component method removes the need for a paint product and provides a method to directly apply TiO2 to the tile for engraving.
The benefits to this method are once the TiO2 has been applied, the tile can be immediately put under the laser, there are significantly fewer fumes, and no harsh solvents required to clean the residual TiO2 from the surface of the tile.
Materials Required: Powdered TiO2, ethanol, kitchen scale, airbrush, air tight containers that will not be degraded by ethanol.
I found that adding an additional splash or two of ethanol helped reduce the clogging and splattering with the airbrush.
To initially mix the the TiO2 and ethanol I poured them both into a wide mouth mason jar and used a pestle to crush any clumps while stirring the solution. The resulting solution should have an opaque white hue with no visible granules and a very low viscosity.
To prepare the tile for the application of the TiO2 solution I wiped the tile off with a dry cloth.
Application
Once the solution has been mixed it is ready for application to the tile with the airbrush. If you have stored extra solution after using some, give the container a good shake before use to make sure that any sediment is fully dissolved in the solution.
I used this airbrush and applied three full hoppers of of the TiO2 solution to the tile using the lowest pressure setting on my compressor (15psi). *This should be done in a well ventilated area (See note at bottom about TiO2 toxicity)*. due to the high evaporation rate of ethanol, when using the airbrush it dries almost immediately after landing on the tile. For spraying the tile I held the airbrush ~6-8 inches (15-20cm) from the surface of the tile moving in sweeping or concentric motions being sure to cover the edges thoroughly. Be sure to take steps to reduce splatters, as an unfortunately placed splatter can ruin an engraving if you are unlucky. Cleaning the nozzle regularly, running lower psi, and thinning the solution with more ethanol should help reduced splatters. In addition to those steps also make sure dried bits and flakes are for the most part removed from the solution, as they will clog the airbrush. After the airbrush has developed a somewhat substantial crust of dried TiO2 it should be rinsed out, because as mentioned just above the bits and pieces tend to clog the airbrush. I have found that keeping a paper towel or rag on hand, and while taking short breaks from spraying, simply wiping the nozzle of the airbrush significantly helps to reduce splattering. Also being cognizant and wiping away any dripping from the hopper before it drips off the airbrush.
Once the tile is coated it will have a noticeable matte look to it and there may be some small visible granulation’s on the surface of the tile. This is expected and ok. The ethanol should be entirely evaporated leaving only a very fine powder coating of TiO2 on the surface of the tile. The TiO2 should have a decent hold on the surface of the tile and not blow off without some considerable effort. I have found that blowing off the tile using the airbrush on the lowest air pressure setting, while the hopper is empty helps to further reduce the granulation on the tile. There should be no loose powder on the surface of the tile. The powder does wipe off very easily however and the tile should be handled carefully by the edges as a slight brush has the ability to take the coating off.
Laser Engraving
There are few to no differences in the actual engraving of the NWT principal component method, and the NWT traditional method. Be sure your drag chain does not brush the surface of the tile during engraving as it will take the powder coating off and likely ruin the engraving. I found that my settings for the NWT traditional method worked well with the principal component method. Running an Ortur “15w” (~4.5w) LM2 at 750mm/min 80% power I was able to get very good results. *Note vaporizing TiO2 with a laser may produce “Hazardous decomposition products:Carbon oxides (CO, CO2)” https://beta-static.fishersci.com/content/dam/fishersci/en_US/documents/programs/education/regulatory-documents/sds/chemicals/chemicals-t/S25818.pdf and you will want to have your ventilation system running like you would while running the NWT traditional method.*
This tile was ran with two hopper fulls and was the first to produce results comparable to spray paint. The image was chosen as its a finely detailed vector and allowed me to see how consistent the application was over the whole tile.
While the results with two hopper fulls were good, I found that three is more consistent and produces just a bit darker fuller black.
Limited raster engraving has been attempted and the results showed promise and will be the next stage of serious testing now that a solid consistent method has been developed.
Once the engraving is finished the tile can be taken to the sink and rinsed off under the tap with some light rubbing by hand or cloth. This should remove all of the excess TiO2 leaving you with a finished work piece. If the back of the tile gets wet it should be left to air dry as it is a porous surface and will absorb some water.
Attempted Application Methods
Several methods of applying TiO2 were attempted before the airbrush was decided upon as the better method. Most of them worked to a varying degree but had strong enough drawbacks to make them less than ideal.
Attempted Application Method #1: Paint Brush
This was the first method I tried, when the coating was right the results were quite good, but getting it consistent over the entire tile proved difficult. The image below is of a tile where the TiO2 solution was brushed on, and the odd gradients can be pretty clearly seen. Also the blacks are not as dark as I would have likely them to be.
Attempted Application Method #2: Pouring
In order to get an even layer over the whole tile I tried taping the edges and pouring the solution onto the surface of the tile. This produced an ok result, however it tended to promote granulation. Which then led to a final result having a sort of fuzzy and unfocused look to them. In addition to the fuzzy look the areas of solid black there tended to be a “salt and pepper” effect where the larger granules seem to prevent the laser from hitting the surface of the tile. I attempted double poring as I hypothesized that it might not have been a thick enough layer to cover the surface of the tile adequately. This was wrong as it actually made the entire image worse .
This tile was ran with a second application of the pouring method, clearly it did not turn out to the same quality as many of the other tiles.
Attempted Application Method #3: Hand Spray Bottle
This method tended to produce more consistent results than the paint brush and a less fuzzy result from the pouring, but it did not eliminate the fuzzy or salt and pepper effects entirely.
Whats Next?
Since the release of the original version of this method I have received some really great input from the laser community at large and I will continue to update and refine the method as further experimentation happens. Some of the things that are currently on the forefront of the docket are trying to figure out good alternative application methods. Particularly using paint rollers, and spin coating. A member of the LightBurn forum identified this article with provides great in depth information on spin coating TiO2 onto ceramic wall tile. https://www.worldscientific.com/doi/pdf/10.1142/S2010194513009951
I have also begun the process of testing raster engraving and will be providing updates as I start to get some consistent results one way or the other.
TiO2 Toxicity
It has been historically accepted that TiO2 when inhaled is carcinogenic, some information was brought to my attention on the LightBurn forums that tends to contradict this notion. “The epidemiological investigations evaluated the mortality statistics at 11 European and 4 US TiO2 manufacturing plants. They concluded that there was no suggestion of any carcinogenic effect associated with workplace exposure to TiO2.” https://academic.oup.com/annweh/article/49/6/461/176940
While there may not be strong evidence at the moment that TiO2 is explicitly carcinogenic, that does not mean it is healthy to breathe. Any micro particulate is not good for the lungs, especially one that is riding on pure or nearly pure ethanol. Therefore I would still strongly suggest treating it like any other chemical or mineral spray and taking steps to reduce the exposure to the inhaled particulates created while working with this method.
In a previous blog post I explained all about the color cycling Mandelbrot Set explorer I wrote in 10 lines of Atari Basic for the BASIC 10 Liner contest (Second place!). While working on this project I thought it would be really cool to create a Mandelbrot Set Zoom video rendered on the Atari, which led me on an interesting journey…
I wanted to make something like this deep Mandelbrot Set zoom video
Or this video I found later that animates the color palette while zooming.
The Atari BASIC Mandelbrot Set renderer is not able to execute millions of calculations for every pixel, as a matter of fact it is configured to execute 81, at that depth the numerical precision of Atari BASIC’s floating point numbers appears to start breaking down, and with it’s 1.79MHz 6502 CPU, more cycles would start to take a very very long time.
The program can zoom in and out on 12 interesting preset locations on the complex plane of the Mandelbrot Set . I realized that if you captured a screen at each size I could scale the bitmap and make an image that had very high resolution (small pixels) in the center, and then could zoom in on it. I also thought if I captured video of the color cycling I could scale and synchronize the videos to zoom in while color cycling, and by offsetting the color cycling by a fixed amount with each zoom level I could create synchronized color coded animated frames that better showed the zoom levels.
Having a concept or idea is one thing but the project was more complicated than expected and the final implementation involved virtual machines, emulators, hundreds of lines of code, a convoluted still and video tool chain, image, and video editing tools – entirely with free and open source software. It the end it is more of a convoluted hack than a toolchain but it worked and that’s what counts!
I won’t keep you in suspense forever
Here are 6 of the 24 resulting Atari BASIC Mandelbrot Set zoom videos, in the ones with frames each colored frame is half or twice as large as adjacent frames:
Mandelbrot Zoom Videos
Videos with colored frames
Here are complete YouTube playlists of all 24 of the Mandelbrot Set zoom videos: 12 locations rendered without and 12 with colored frames. The first 3 videos in each playlists are the ones above, so if you’ve already seen them you may want to skip ahead to see the remaining 9 videos in each playlist.
I reached out to fantastic Atari chiptunes artist Adam Sporka and he generously offered to share his music for use in these videos which is done on a real Atari 800 . I think it is totally awesome that all graphics and audio were created on Atari 8 bit computers.
Here’s how I did it…
This blog isn’t necessarily a “how-to” or “follow along” article as I assume you don’t need to make color synchronized videos from Atari BASIC, but I detail the challenges, remedies (hacks), and free and open source tools used to solve the problems encountered along the way and generate the final videos. I hope the troubleshooting strategies, solutions, and tool details are interesting and helpful to you.
In the Atari800Win-PLus emulator I ran the program, visited each location, zoomed all the way in and all the way out, each time taking ~30 minutes to render and then recording a ~20 second video. The 297 videos took most of a weekend to render and capture. I ran the emulator in 12 Windows XP Virtual machines in VirtualBox on my (KDE Kubuntu) laptop so was able to keep the process moving. This animated .gif was captured from the desktop using Peek while I was doing these captures.
When capturing video, the emulator has a limited set of video codec’s to choose from: Cinepack Codec by Radius, Microsoft Video, Microsoft RLE, and Intel IYUV. When testing, Cinepack did not seem to be compatible any more, and I decided to use Intel IYUV format because it was compact, and looked good. I did run into a horrifying problem: After all the video was captured I looked at in in VLC on the laptop and bizarrely the video was mirrored. This appears to be an issue with the Linux version of the playback codec, and to my relief did not pose a problem in Windows. (* WHEW! *)
I used folder sharing in VirtualBox to capture the videos from all the emulators running in the virtual machines into a single shared folder, and then I copied them all to a folder shared on my Windows machine (via Samba).
Each of the 12 locations had several videos with numbered filenames like “Thorny Lightning 0.avi”, “Thorny Lightning in 2.avi” or “Thorny Lightning out 3.avi” where the “in” and “out” indicated the number of times it was zoomed from the default zoom level named “0“.
Catastrophe!
I thought I could use video editing software to simply composite the Mandelbrot Set zoom but I was wrong, very wrong. I though I would manually set the in and out point in each of the 297 video clips in video editing software, align them on the timeline, set some zoom interpolation, and voila! … but when I tried a test sample I discovered two massive problems:
The video zoom effect is not linear, it is exponential, it doubles in size at regular time intervals. This is something that is much harder to do in video editing software, and is VERY hard to synchronize across several aligned composited color cycling videos.
The color cycling was not synchronized between videos. Even though I could perfectly match the first and last frames of a color cycle sequence in each video and scaled the videos on the timeline to the same length, the middles of the color cycling sequence were often out of sync leading to flickering that ruined the quality of the video (and yet gave me the idea for the colored frame version of the videos).
Handling zoomrate (aka scripted scale and compositing hack)
The only way I thought to handle the zoom issue was to programmatically composite the frames. This would require exporting the frames from the .avi files, identifying the synchronized frames from each of the source avi’s, and compositing them together so all of the images were scaled and registered to one another perfectly while zooming exponentially.
For processing I extracted all the frames of each .avi video into numbered bitmaps in a _frames folder using FFmpeg. To do so I used an hybrid manual automated process, which is a fancy way of saying I kept editing a batch file until I got everything I needed. The batch file basically looked like this:
for /r %%i in ("..\Thorny Lightning*.avi") do ( ffmpeg -i "%%~pi%%~ni.avi" -filter:v "crop=320:192:10:24" "_frames\%%~ni %%04d.bmp" )
This would process all the .avi files from a particular location, in this case “Thorny Lightning”, using a wildcard in a for loop. The script calls FFmpeg once on each .avi file that matches the wildcard, inputs the .avi, crops the black overscan border from the images and saves them as numbered bitmaps in the “_frames” folder. After processing all 297 videos I have 413,153 numbered .bmp files (70GB).
To composite the frames in an exponential zoom I wrote a Python script that uses ImageMagick to scale and composite the source .bmp frames into zooming video clip frames. The scaling ended up being simpler than expected. Since the image grows geometrically with time, the scale based on time t is 2t and since each video is half the size of the next largest I could divide the dimensions in half for successive frames, all centered at the center of the image. For each output image the program generates command lines similar to this one to execute ImageMagick:
magick convert -size 320x192 -gravity center ( "_frames\Thorny Lightning out 15 0133.bmp" -sample 329x198 ) ( "_frames\Thorny Lightning out 14 0144.bmp" -sample 165x100 ) -composite ( "_frames\Thorny Lightning out 13 0120.bmp" -sample 83x51 ) -composite ( "_frames\Thorny Lightning out 12 0140.bmp" -sample 42x26 ) -composite ( "_frames\Thorny Lightning out 11 0109.bmp" -sample 22x14 ) -composite ( "_frames\Thorny Lightning out 10 0116.bmp" -sample 12x8 ) -composite ( "_frames\Thorny Lightning out 9 0130.bmp" -sample 7x5 ) -composite ( "_frames\Thorny Lightning out 8 0128.bmp" -sample 4x3 ) -composite ( "_frames\Thorny Lightning out 7 0121.bmp" -sample 3x2 ) -composite ( "_frames\Thorny Lightning out 6 0120.bmp" -sample 2x2 ) -composite ( "_frames\Thorny Lightning out 5 0129.bmp" -sample 2x2 ) -composite -crop 320x192+0+0 +repage "Thorny lightning\frame_ioi_00000005.bmp"
This line makes a 320×192 bitmap composited of 11 scaled source bitmaps. Finding the right settings to get ImageMagick to composite the videos the way I wanted with cropping and point sampling (instead of anti-aliasing) was a challenge. It is a very powerful tool that can process images in a multitude of ways, often offering many ways to accomplish the same or similar results (ImageMagick reference).
Color cycling synchronization (aka manual image index hack)
The source color cycling videos were manually captured and contain more than a single clean synchronized color cycle loop (extra frames at the beginning and at the end of the video), so I manually looked at the bitmaps to find the index of the first and last frames of the color cycle and included those into the program to create a test video. The resulting video finally zoomed perfectly but was still ruined by flickering due to the un-synchronized color cycling.
Digging a little deeper…
Atari BASIC is not frame synced, meaning it does things continuously and without synchronization with the TV display signal. The Atari computer emulator on the other hand renders video at 60Hz, one frame for every NTSC field emulated.
I started performing analysis of the bitmap sequences in Python using Pillow (fork of the Python Image Library or PIL) for image processing. Initially I tried to detect the number of colors in an image to decide when the color cycling was changing but that was vexed by the scan lines effect I had enabled in the emulator which caused anti-aliasing of some of the lines and a lot more than the 9 Atari graphics mode 10 colors I was expecting (I still think it looks cool). While performing additional experimentation I noticed that successive video frames were changing while color cycling was copying one register to the next and calculating a new color, but there were many duplicate frames while the rest of the Atari BASIC program executed its processing loop. Additionally I was aware that at one point in the color cycling all of the onscreen colors would be gray scale (actually close but not perfectly RGB gray).
The winning strategy (aka image processing frame sync hack)
I scan each bitmap sequence from a video from the beginning to find the first frame that is entirely gray scale, then I scan from the back for the first frame of the same gray sequence at the end, this defines the range of frames for one full color cycle. Within that range of frames I compare each frame with the next until I find a set of duplicate frames, and store the first duplicate frame’s index. There are exactly 128 frames in a color cycling sequence: 8 brightness cycles of 16 hues. Adding a multiple of 8 will synchronize brightness but will offset hue, this is used for the colored frames effect. When the process is done it should have discovered the exact 128 frames representing one color cycle for that bitmap sequence (from the .avi) at that zoom level.
More complexity
This almost worked perfectly, except Atari BASIC is not perfect and I am not perfect. Atari BASIC would occasionally let an extra duplicate frame occur, and I occasionally recorded two or three color cycles that would result in 256 or 384 (or more) frames instead of the expected 128 frames: in either case it messed things up.
More fixes (aka extra images Gimp hack)
The unwanted duplicate frames were pretty easy to find; usually duplicate frames were 9 or 10 frames apart, but when an extra is inserted, they will be only 4 to 6 frames apart. When the program detects anything other than 128 frames in a cycle it dumps all the frame offsets and the number of frames between offsets. I manually tracked down the extra frames and defaced them in Gimp making them no longer duplicates. I re-recorded the videos I screwed up (and deleted the bitmaps I made, and made new bitmaps with FFmpeg), and was back in business.
What now?
By now Adam had agreed to share his music and I had to figure out which songs I thought matched with each video. To do that I created some more batch files this time using FFmpeg to create .mp4 video files from the exported .bmp frames and the .mp3 music Adam provided. I used command lines like this to generate test videos with music:
This reads the bitmap sequence at 60fps and the music Adam provided, mapping the bitmap sequence channel 0 to video, and the music channel 1 to audio at an output framerate of 60fps using the h264 codec with very low loss, at 4 times the resolution (if I uploaded the video to YouTube rumor has it increasing the resolution will increase the quality) with the bitexact flag telling it to resample the image rather than use a smoothing enlarging filter.
Here is a similar simpler command line to generate only a video with no sound.
These were excellent tests to adjust the color cycling and zoom rates and see which of Adams songs matched 12 Mandelbrot Set locations, but the videos had no titles, credits, or transitions. They were previews but they lacked finished polish.
Are we there yet? (aka final composition)
I used HitFilm Express to edit the 12 video projects and render 24 videos. I imported the bitmap sequences as clips (didn’t use the preview compressed .mp4’s), created intro and outro titles, composited the video with the awesome music provided by Adam Sporka, and synced up all the fades. I exported two versions of each video, one with colored frames, one without. Then uploaded them to YouTube, made the descriptions, and end cards, and etc. You know the rest.
In conclusion
In the end I love the way the videos turned out, it’s amazing to think that everything you see and hear in these videos was created on Atari computer technology that was invented before Benoit Mandelbrot visualized the Mandelbrot Set at IBM March 1st, 1981. The Atari BASIC script that rendered every frame was only 10 lines long but it took a lot of creativity to hack together a free and open source toolchain involving VirtualBox running 12 Atari800Win-PLus emulators, half a dozen batch files, FFmpeg, ImageMagick, Gimp, 560 lines of Python using Pillow, and finally HitFilm Express to generate the final videos.
Check out the latest in our series of outtakes from Workshop 88 Maker Meetings here:
See the rest of the discussion in the original video
The reason behind using the Schlieren system was to find out what we could see while blowing over the top of a plastic pop (soda) bottle. There was quite a bit of discussion and suggestions for experimentation in the original Maker Meeting video.
Workshop 88 is a makerspace in Glen Ellyn Illinois. We are more than a workshop, we are a growing community of creative talented people who aspire to learn and share knowledge, experiences, and projects.
Join us! To become a member join at Workshop88 or you can help us continue to share our projects and activities by supporting us via Patreon.
There were two questions I was not able to answer, but I’ve done some more investigation:
If you register a callback function that is invoked when a key is pressed or released, is that based on interrupts? No. It ties into the non-blocking getKey() function which is already being called each time through the loop. If a callback is registered, it will be called by getKey() when appropriate.
Does multi-key support mean that it buffers up a sequence of characters, or does it mean you can press multiple keys (chords) at the same time? Despite my wrong guess last night, it’s the latter. The getKeys() function will return a list of up 10 keys that are pressed or released, even if a second (or later) key is pressed before the first ones are released. Apparently, they do the right magic with pull-ups and only driving one line at a time so that they can do this without diodes on the switches.
Other items shared!
After Peter’s presentation, Jim shared with us how he uses an ESP8266 to control an Arduino. Very cool! At the end, Dave shared with us his progress working on a Dalek build project – including some very nice resin casting!
Workshop 88 is a makerspace in Glen Ellyn Illinois. We are more than a workshop, we are a growing community of creative talented people who aspire to learn and share knowledge, experiences, and projects.
Join us! To become a member join at Workshop88 or you can help us continue to share our projects and activities by supporting us via Patreon.
Designing 3D printed parts to help supplement a situation.
Workshop 88 is a makerspace in Glen Ellyn Illinois. We are more than a workshop, we are a growing community of creative talented people who aspire to learn and share knowledge, experiences, and projects.
Join us! To become a member join at Workshop88 or you can help us continue to share our projects and activities by supporting us via Patreon.
Bob showed what he 3d Printed to replace a broken part around the house. Next week, bring examples of things you made (instead of bought) and used around the house.
Workshop 88 is a makerspace in Glen Ellyn Illinois. We are more than a workshop, we are a growing community of creative talented people who aspire to learn and share knowledge, experiences, and projects.
Join us! To become a member join at Workshop88 or you can help us continue to share our projects and activities by supporting us via Patreon.
This project is an interactive Mandelbrot set explorer able to zoom in and out of twelve classic fractal locations featuring a multi-resolution renderer, title screens, sound, and nine selectable color cycling patterns ranging from soothing to psychedelic, all in only 10 lines of Atari BASIC.
I was inspired by the Hackaday article Basic In 10 Lines Or Less which led me to the annual Basic 10 Liner Contest page (English rules start halfway down the page). There you can see current and previous entries spanning many years. The basic idea is to write the best game, application, or demo in 10 lines or less of BASIC on your favorite platform. There are three game categories distinguished by maximum line length and one “SCHAU” or “Look” category for “a demo, a tool or an application program” into which this project will be entered.
What is the Mandelbrot set?
You’re probably familiar with the lightning enshrouded circle and cardioid fractal images that resemble colorful spirals and paisley when examined more closely.
Images created with https://math.hws.edu/eck/js/mandelbrot/MB.html
The colors in these images represent the number of times the Mandelbrot function is iterated before it diverges. Central areas (typically black) are areas that either do not diverge (infinite iterations) or are beyond the number of iterations the program is capable of performing. This program is configured to perform 81 iterations. There are YouTube “Mandelbrot Set Zoom ” videos that reach magnifications requiring hundreds of millions of iterations (like this one).
The Mandelbrot set has an unknown but bound area probably just under 1.5065 yet the perimeter is infinitely long and complex. The more you zoom in on the edge, the more twists and convolutions are revealed. There are several “mini” Mandelbrot sets all around the main form and they are all connected.
This Program’s Mandelbrot Set Locations
There are many well known locations around the Mandelbrot set that have unique features and appearances that give them their colloquial names including: Seahorse Valley, Elephant Valley, Sceptre Valley, and The Needle. Below are the locations featured in this program.
Instructions
Download and install Atari emulator
This section describes how to download, install, configure and use the Atari800Win-PLus emulator. If you do not need to install and configure this emulator you may skip this section.
Set your video system to NTSC You can set it to PAL but he color cycling and possibly rendering will be 1/6 slower. Otherwise it should make no difference on a PC Emulator.
“Insert” the Mandelbrot Set Explorer – 10 lines Atari BASIC.atr disk image in D1: Atari menu, Disk Drives option or Alt-D Alternately, you can drag and drop the file onto the running emulator. (you may need to re-enable the BASIC cartridge after drag and drop)
Configure input, you will need to emulate joystick 0 and its button. I use the default: Arrows +RCTRL as fire Disable Autofire In Advanced… Check Allow using keyset keys also as regular keys
In Misc menu Preferences uncheck Stop when inactive This will allow you to let the emulator render in the background while the window does not have focus.
In the View menu select Graphics options… (Alt+G) The smaller window will render faster, but larger sizes are acceptable.
In View menu set Artifacting… to GTIA
In View menu set Stretching to Scan lines (my personal preference)
Function keys
F7 Toggle Unlimited speed (to render more quickly, ~30x-50x, I highly recommend using this when rendering)
F10 Capture image
F11 Enable fast disk IO (Turn this on and forget it)
To load the Atari Basic program, at the READY prompt enter: LOAD"D1:MANDLEBRO.BAS"
Alternately you may enter the listing by entering: (they are the same) ENTER"D1:MANDELBRO.LST"
If you would like to see the program (optional) listing enter: LIST Note: All of the abbreviations will be automatically expanded, and if you try to edit the lines on the Atari they will be too long. See How I developed this program below for information about how to edit this program.
To run the program enter: RUN
After a few seconds of initialization you should see the title screen for the first area – Mandelbrot Set at (0,0).
Remember: F7 toggles normal and full speed (muted) which is very useful to speed the rendering.
Program Usage
Controls
Joystick (typically arrow keys in emulator)
Up – Zoom in (enlarge image to double its size)
Down – Zoom out (shrink image to half its size)
Right – Move to the next of 12 locations and reset zoom level to default for location
Left – Move to previous of 12 locations and reset zoom level to default for location
Joystick Button (typically Right CTRL in emulator)
Title screen: Exits title screen to renderer
While rendering: Cycles through color cycling modes
Due to potentially lengthy computations, input may be slightly delayed. Sounds confirm will confirm inputs to the user (Note: when running AtariWin800-PLus at full speed using F7, the emulator does not emit sound)
Title Screen
Mandelbrot Set is the first of the 12 preset locations
A title screen is displayed whenever moving to a new preset location or changing zoom level and it displays the following information:
Nickname of location (“MANDELBROT SET”)
Center coordinates X,Y
Zoom Z (magnification level, screen x extends from -1 to 1 at zoom 1)
Numbers may be expressed in scientific notation. For example 2.5e-5 means 2.5 * 10-5 or 2.5 * 0.00001 which equals 0.000025.
These coordinates are compatible with all other Mandelbrot set exploration tools.
Press the joystick button to exit the title screen and begin rendering the Mandelbrot Set!
Mandelbrot set multi-resolution rendering
Multi-resolution rendering in progress
It takes time to perform the many calculations needed to populate the 15,360 pixel display. Rather than slowly raster fill the display (left to right, top to bottom) this program uses a progressive multi-resolution rendering technique. It starts by filling the 80 column display with three evenly spaced rows stretched vertically 64x to fill the entire 192 line display. Then successive passes twice as many rows (after the second pass), half as tall as the previous pass until the last pass fills in every other row of the display.
Each pixel is calculated exactly once, each 80 pixel row is still calculated from left to right, each row takes roughly the same amount of time to render regardless of its height, and each pass doubles the resolution as the previous pass (as a consequence it also takes about twice as long).
This approach takes the same amount of time to fully draw a screen but a low resolution image is rendered quickly providing a preview that is continuously refined until complete. This quick preview is helpful when zooming and switching locations.
Multi-resolution rendering passes:
3 rows each 64 pixels tall
3 rows 32 pixels tall filling the bottom of the first rows
6 rows 16 pixels tall filling the bottom half of all the previous rows
12 rows 8 pixels tall filling the bottom half of all the previous rows
24 rows 4 pixels tall filling the bottom half of all the previous rows
48 rows 2 pixels tall filling the bottom half of all the previous rows
96 rows 1 pixel tall filling every odd line of the screen and completing the image
While rendering, a single pixel tall cursor is displayed to let the user more easily locate the current rendering location.
Tip: Rendering a single image at normal Atari speeds can take 16 hours or more depending on the complexity, press F7 to toggle “Run Atari as fast as possible” and they can be rendered in 15 ~ 30 minutes.
Color Cycling
Color cycling modes
Color cycling is technically moving color values from color register to color register, instantly changing the colors on the screen without having to change pixels. Rather than cycling 8 values through the 8 color registers to repeat a short pattern, this program cycles 7 colors then adds a constant to the value in the 8th register to cycle through interesting color sequences from 8 to 128 colors in length. Color cycling is performed continuously when the image is fully rendered and with each pixel calculation while rendering. Pressing the joystick button will cycle through the 9 color cycling modes above (with a beep).
Detailed description of each of the 9 modes (pictured in left to right top to bottom order above):
Decreasing intensities then decreasing hues (brightest color first)
Increasing intensities then increasing hues (darkest color first, reverse of 1)
Eight increasing hues through eight color registers at constant intensity for continuous hue cycling.
Increasing hues while descending in intensities (brightest color first)
Increasing hues while increasing intensities (darkest color first)
Increasing hues of constant intensity (since there are only 8 color registers and 16 hues, only half the hues will be visible in a sliding window fashion)
Decreasing hues while descending in intensities (brightest color first)
Decreasing hues while increasing intensities (darkest color first)
Decreasing hues of constant intensity (since there are only 8 color registers and 16 hues, only half the hues will be visible in a sliding window fashion)
Interesting notes about the color cycling modes:
Modes in the left column all cycle with the brightest color first
Modes in the second column cycle darkest color first
Modes in the right column only change hue and not brightness (excellent for seeing the boundary of the Mandelbrot Set)
The first two columns in the first row cycle through intensity then hue
The first two columns of the last two rows cycle through intensity and hue in each step
Detailed Program Description
10 lines less than 256 characters long
Maximum line length for the contest is 256 characters. The image below shows the longest line (3) is 216 characters long.
Note: Spaces needed to be added after comas in DATA statements below to permit WordPress to wrap lines.
Line by line functional description
1LS=10:MC=81:DI.N$(192),Q(159):F.I=0TOLS-1:F.J=0TO7:Q(78+I*8+J)=8-J:N.J:N.I:F.I=0TO77:REA.X:Q(I)=X:N.I:Z=Q(24):N$="mandelbrot set ":L=0:T=L:Q(158)=L:DC=T
Line 1 is a one time program initialization.
LS=10 LS is the number of color cycles in the solution.
MC=81 MC is the maximum Mandelbrot Calculations depth which is 8*LS+1. The 8 is the number of colors in the screen palette which will be repeated LS times, and the extra one is for the black interior of the unreachable Mandelbrot calculations (see Q(158) below).
DI.N$(192),Q(159) Dimension N$, and data array Q. N$ holds the 12 name streams for each location, each 16 characters long (12 * 16 = 192). Q is an array that holds program constants and precalculated data. See Managing program lookup tables and constants below.
F.I=0TOLS-1:F.J=0TO7:Q(78+I*8+J)=8-J:N.J:N.I Nested I and J loops to precalculate color cycling data in array Q to be used in rendering.
F.I=0TOLS-1 The I FOR loop counts through all LS color cycles
F.J=0TO7 The J FOR loop counts through 8 colors.
Q(78+I*8+J)=8-J stored the color value to use for index 0 to 80 (I * 8 + J) which repeatedly counts down from 9 to 1 (8 – J)
F.I=0TO77:REA.X:Q(I)=X:N.I FOR I loop reads 78 program constants from DATA statements and places them in the master data array Q for random access later. See Managing program lookup tables and constants below.
Z=Q(24) Zoom factor Z is loaded from the first location of 12 Zoom elements in the constants array.
N$="mandelbrot set " N$ is the area name array, it is temporarily initialized with the first level’s name.
L=0:T=L:Q(158)=L:DC=T
L=0 Location index L is initialized to zero.
T=L The top T of multi-resolution pixels is set to zero by copying L (smaller tokenized line length).
Q(158)=L Q(158) is the last color in the color cycle table and is set to border color zero which is black, again by setting equal to L. This color will be used for all of the pixels with unreachable complexity meaning the function does not diverge to infinity in the 81 iterations (defined by Mandelbrot Calculations variable MC) – these are the black areas of the Mandelbrot images.
DC=T Delta Color index DC is set to zero by copying T. DC is used as an index to lookup the actual delta value that will be added to the color value to achieve the 9 color cycling modes.
2CX=Q(L):CY=Q(L+12):D=64:D2=D*2:H=D-1:GR.18:I=L*16+1:?#6;N$(I,I+15),,,"x";CX,"y";CY,"z";Z:?#6,,,,"press JOY BUTTON":F.I=0TO1:I=1-STRIG(0):POK.77,0:N.I:GR.10
Line 2 is entry to the title screen, main loop point for level select, and sets the graphics mode for rendering after leaving the title screen.
CX=Q(L):CY=Q(L+12)The center of the Mandelbrot rendering CX, CY are read from 12 element portions of the constants array Q offset by the Location index L. These are the center coordinates for each preset location. (The Zoom parameter is read elsewhere)
D=64 Delta top D is set to 64 which will start the multi-resolution renderer rendering 64 pixel rows 64 pixels apart in the y (vertical) direction.
D2=D*2 D2 is set equal to D so the distance between rows is the same as the pixel height for the first pass, filling the screen.
H=D-1Pixel height H is set to D-1 to account for drawing counting from zero. Drawing from 0 to 63 will draw 64 pixels, any more and we will get errors for trying to draw off the screen.
GR.18 is Graphics mode 2+16. Mode 2 is large text, and the +16 means fill the screen with text (do not include a 4 line window of normal Graphics mode 0 characters).
I=L*16+1 Calculate substring index I based on integer location index L. N$ will be filled with 16 character names, and Atari BASIC strings index from 1. L*16+1. The first time line 2 is executed L is guaranteed to be zero.
?#6;N$(I,I+15),,,"x";CX,"y";CY,"z";Z ?#6 means print to device number 6 which is how to display text in graphics mode 2. Semicolons print strings back to back and commas insert tabs up to 10 spaces (two commas fill a 20 character mode 2 line). The 16 character location name sub-string is printed from N$ at index I followed by a comma to complete the line and two more commas to add a blank line. Then “x” and CX, then a comma (tab), “y” and CY, another comma (tab) and “z” and z. The lengths of these numbers are not controllable so we allow line is allowed to end Z after z.
?#6,,,,"press JOY BUTTON" The next print includes four commas to skip two lines then prints the mixed case "press JOY BUTTON". In mode 2 all characters are printed in uppercase, printing mixed upper and lower case prints in different colors. Numbers and punctuation are printed in the same color as upper case.
F.I=0TO1:I=1-STRIG(0):POK.77,0:N.I Wait for the user to press the joystick button while resetting the Atari attract mode timer to prevent color cycling.
STRIG(0) is the trigger of the first joystick. It is 0 when pressed and 1 when not pressed. This will loop until I is 1 but 1-STRIG(0) will only be 1 when STRIG(0) is zero when the button is pressed.
POK.77,0 will reset the Atari computer attract mode timer preventing the automatic attract mode color cycling intended to protect CRTs in Televisions from image burn in.
GR.10Sets the GTIA graphics mode 10, 80 x 192 pixels capable of 9 colors. Color 0 is set to black and is used for the border and pixels requiring more than the 81 Mandelbrot Calculations this program is capable of.
3N$="mandelbrot set lightning seahorse valley spirals needle (mini) lightning (mini)scepter valley elephant valley needle hairs thorny lightningtails on tails @spine blossom ":IF D<=1 THEN G.6
Line 3 sets all the location names in N$ and skips rendering if the image is completely rendered. Line 3 is executed right after title screens, with each iteration of the multi-resolution renderer, and when the image is fully rendered with each iteration of color cycling.
N$="mandelbrot set lightning seahorse valley spirals needle (mini) lightning (mini)scepter valley elephant valley needle hairs thorny lightningtails on tails @spine blossom " Sets N$ to the full 192 character string containing the 16 character names of the 12 locations in order. This could not be done earlier due to line length limitations.
IF D<=1 THEN G.6 D is delta Y for each line in the multi-resolution renderer. The last pass will render every odd line with a D of 2 (even lines were rendered in previous passes). Each iteration D is divided by 2, when it reaches 1 rendering is done so rendering is skipped, GOTO 6 jumps to color cycling.
Line 4 is the main part of the renderer setting up the nested pixel location loops for Y then X, plotting the cursor, and performing the iterative Mandelbrot calculation
F.Y=T TO191STEPD Loop over all the scan lines in the image starting at top T to the last line 191 stepping delta D which starts at 64 and is halved in each rendering pass
B=CY+(Y-96)/4*Z Transform screen pixel coordinate Y to imaginary (Y) coordinate in Mandelbrot coordinate system B. (A,B are used for real and imaginary coordinates because R and I are used elsewhere)
CY is the y coordinate of the center of the location in Mandelbrot space (on the imaginary y axis)
Y-96 centers y on the 192 pixel tall screen (range from -96 to 95)
/4 The divide by 4 is to correct for the wide 4:1 aspect ratio of Graphics 10 pixels (80×192 on a 4:3 aspect display)
*Z scales the Y range from -96 to 95 down to the desired zoom level. Small Z values effectively shrink the viewport which magnifies the apparent shape
F.X=0TO79 Loop over all 80 columns on a line. All lines in an area of an image take approximately the same time to render based on the complexity of the Mandelbrot calculations.
A=CX+(X-40)*Z Transform screen pixel coordinate X to real (X) coordinate in Mandelbrot coordinate system A. (A,B are used for real and imaginary coordinates because R and I are used elsewhere)
CX is the x coordinate of the center of the location in Mandelbrot space (on the real x axis)
X-40 centers X on the 80 pixel wide screen (range from -40 to 39)
*Z scales the X range from -40 to 39 down to the desired zoom level. Small Z values effectively shrink the viewport which magnifies the apparent shape
C.1:PL.X,Y Draw the cursor Color 1 plot X,Y. This gives the user an idea of where calculation is being performed and how long until the image may be fully rendered.
R=0:I=R:R2=R:I2=R Set real, imaginary, real squared, and imaginary squared variables to zero. Setting R to zero and other variables to R is an Atari BASIC optimization to fit more on a line.
F.C1=0TOMC-1 Calculation count C1 loop from 0 to MC-1, or loop Mandelbrot Calculations (MC) times.
The Mandelbrot calculation is Zn+1 =Zn2+C in the complex plane.
Z and C are complex numbers (x, y*i) where i is the square root of -1
Z starts as 0 (R=0:I=R)
C is the location (A, B*i) derived from the viewport coordinates centered on CX, CY with a viewport scaled by Z (small values magnify)
Each iteration performs the complex calculation Zn+1 =Zn2+C J=R2-I2+A Calculate the real portion ZRn+1 = ZRn2 – ZIn2+CR R2 is precalculated ZRn2 from previous loop I2 is precalculated ZIn2 from previous loop A is CR J is a temporary variable needed so we can complete the imaginary portion of the calculation I=(2*R*I)+B Calculate the imaginary portion 2*ZRn* ZIn+CI R is ZRn I is ZIn B is CI
R=J Assigns the calculated real portion to R from the temporary variable J
R2=R*R:I2=I*I Calculate ZRn2and ZIn2
C=C1 Save C1 into C for color cycling. At the end of the for loop C1 will be 1 more than the max value, which will cause us out of bounds headaches so we will use the last value saved here in C.
IF(R2+I2)<4THENN.C1 Test for divergence The colored shapes of the Mandelbrot plots you’re familiar with represent the how many iteration it takes before the calculation is divergent (it heads off to infinity). The central areas (typically black) either are not divergent, or require more calculations to resolve the infinite complexity of the boundary of the Mandelbrot set. It’s proven that Z will be divergent if the magnitude of Z is ever greater than 2. The magnitude of a complex number is calculated as the square root of the sum of the squared real and squared imaginary coefficients: sqrt(ZR2 + ZI2) Here we calculate the square of the magnitude and test if it is greater than the square of two; it is an optimization to remove a costly square root calculation. If the function is not yet divergent ( (ZR2 + ZI2)<4 )continue to loop with NEXT C1
Line 5 Set the color based on the calculated complexity, plot the top of the pixel, and draws a vertical line to fill the multi-resolution line. The rest of the line is filled with data.
C.Q(C+78) Set color based on complexity C which is the loop iteration count. from line 4 used to index precalculated color cycling table stored in Q in line 1
PL.X,Y:DR.X,Y+H Plot the top of the pixel X,Y and draw a line to the bottom of the pixel X,Y+H
D.0, -0.170337, -0.745107298, -.462160300, -1.6487359367, -0.17485, -1.287769, .3150751, -1.9990959, -1.192101, -0.747227, -1.457758 This data is the X (or real) coordinates of the 12 preset locations.
6F.I=1TO8:POK.704+I,PEEK(705+I):N.I:C=PEEK(713)+Q(36+DC):C=C-INT(C/256)*256:POK.713,C:POK.77,0:S=STICK(0)-5:IF S=10 THEN G.8
Line 6 Performs color cycling, resets attract mode timer, checks for stick input, skipping line 7 if there is none.
F.I=1TO8:POK.704+I,PEEK(705+I):N.I copy 7 colors “down one” by looping through color locations 1 to 8 (counting from memory location 704 which is the base for all colors in memory). and setting them with data from locations 2 to 9 respectively. Colors for GTIA graphics modes, including mode 10 must be read and set by peek and poke. Atari BASIC was written to support the earlier CTIA graphics chip and does not provide commands to set or read more than 4 colors. (See “Graphics 10” onGTIA: An Illustrated Overview)
C=PEEK(713)+Q(36+DC):C=C-INT(C/256)*256:POK.713,C Perform color cycling on color 9 in memory location 713 (704+9).
C=PEEK(713)+Q(36+DC) Read color byte from color memory location and add a constant to it to implement color cycling. DC is the index to the type of color cycling which is determined by the constant that is added to the color register each iteration. The 9 value color cycling constants table starts at index 36 in Q Atari computers are capable of displaying 128 colors which are encoded into a bite as follows: The upper 4 bits represent the 16 possible hues Even values of the the lower 16 bits represent 8 intensities.
C=C-INT(C/256)*256 Atari BASIC lacks modulo and boolean operations. This calculation is equivalent to modulo 256 and this pattern is used frequently in my BASIC programs. See Modulo below for a description of how it works.
POK.713,C Store the adjusted color value back in color 9 in memory location 713 (704+9)
POK.77,0 Reset attract mode timer to prevent unwanted color cycling
S=STICK(0)-5:IF S=10 THEN G.8 Read Joystick 0 value and skip joystick processing if the stick is in the unmoved centered position. Tha Atari joysticks return the following values when pushed in the respective directions (15 center):
14
10 6
11 15 7 Atari Joystick values
9 5
13
By subtracting 5 we get these values which are smaller indices for table lookups later. Notice that the center value is 10, so if S=10 then we skip joystick processing by GOTO 8
Line 7 The joystick moved either changing a location or a zoom level. Make a cute joystick acknowledgement chime sound, adjust location, adjust zoom level, partially reset multi-resolution renderer, pop out of X and Y loops and go to Title screen
F.I=24TO0STEP-1:SO.0,I*.4+24,10,I*.75:N.I Make chime sound by looping from 24 to zero and performing a sound statement with the following parameters: 0 voice 0 (first of 4 voices) I*.4+24 Pitch range from 33 to 24 (increasing pitch) 10 Distortion, 10 is pure square wave I*.75 Volume 18 to 0, decreasing from full volume to silence.
L=L+Q(45+S):L=L-INT(L/12)*12 Add delta level to L from constants starting at the 45th element of Q indexed by joystick direction S which is stick direction -5 (and remember S=10 skips this line). Here are the table values. 1,1,1,0,11,11,11,0,0 Indices 0,1,2 all move the stick to the right to the delta level is 1 Indices 4,5,6 all move the stick to the left so the delta level is 11. The L=L-INT(L/12)*12 modulo 12 operation only works on positive values so in order to “decrement” the level 11 (12-1) is added and then the modulus operator works. Indices 8 and 9 move the stick up and down which are zoom functions that do not impact level so delta level is 0
Z=Z*Q(56+S)+Q(L+24)*Q(67+S) Set Zoom level. This operates similarly to the level select using table lookups but must be able to reset Z when a new level is selected (left or right on the joystick) or half or double Z when zoom is adjusted (up or down on the joystick) Atari BASIC lacks ELSE and ENDIF so each IF THEN statement completes a source code line requiring new approaches to solve basic problems when line count is limited. HERE we use the numeric method of choosing coefficients based on stick direction to solve this problem in one equation and table presets. Q(L+24) Is the initial Z value for the level L, 12 initial Z values are stored in Q starting at index 24 Q(56+S) Is the coefficient for the existing Z value 2,.5,0,0,2,.5,0,0,2,.5 Notice these are 2 in all downward direction indices, .5 in all upward direction indices, and zero for left and right Q(67+S) Is the coefficient for the default Z value for the current level L 1,1,1,0,1,1,1,0,0,0 Notice these are 1 in all left and right direction indices and 0 in up and down The result is that pushing up, down, left, or right results in one side of the plus sign in the equation being zero and the other having a meaningful value
T=0 Reset the top of the multi-resolution pixel to 0
DC=T Reset color cycling type to 0
POP:POP:G.2 Pop out of X and Y loops and goto line 2 to display the Title screen for the current location and zoom level.
8IF STRIG(0)=0 THEN SO.1,20,10,15:SO.1,20,10,0:F.I=0 TO 1:I=STRIG(0):POK.77,0:NEXT I: POK.713,11:DC=DC+1:DC=DC-INT(DC/9)*9
Line 8 reads the joystick button while rendering and if pressed acknowledges with a chirp and cycles through the 9 color cycling modes.
IF STRIG(0)=0 THEN Tests to see if the button is pressed, STRIG(0) is 0 when pressed
SO.1,20,10,15:SO.1,20,10,0 Emits a chirp on voice 1, frequency 20, distortion 10 (pure square wave), volume 15 then immediately 0 in the second command
F.I=0 TO 1:I=STRIG(0):POK.77,0:NEXT I Loop similar to one used in line 2, but this one waits for the button to be released (STRIG(0)= 1). POKE 77,0 again in the loop to reset attract mode timer.
POK.713,11 Set color value to a known value so cycling is deterministic (not dependent on the value in the color register when button is hit)
DC=DC+1:DC=DC-INT(DC/9)*9 Increment color cycling type index DC and perform modulo 9 on the value.
9IF D>1 AND S=10 THEN N.X:N.Y:D2=D2/2:D=D2:T=D/2:H=T-1:D.0, -1.06506, -0.15020534, -.5823998, 0, -1.071623, .063761, .02918, -0.000000063, 0.3061769, 0.105766, -0.001353
Line 9 if renderer is active then continue looping through all pixels on the screen, then adjust the multi-resolution renderer for the next pass. Line contains data statement with Y values for 12 preset locations.
IF D>1 AND S=10 THEN If delta line D is two or greater and the stick is not pushed in any direction then the renderer is still active so…
N.X:N.Y Finish looping through pixels in the current pass of the renderer then (still in the IF THEN…)
Reset multi-resolution renderer for next pass
D2=D2/2 Divide D2 by 2
D=D2 Set D to D2
T=D/2 Set the top of the next pixel to half the delta D (fills bottom half of previous row)
H=T-1 Set row height to be the top index (halfway down previous row) -1. The minus 1 is to account for starting drawing at pixel offset 0, so 0 to T-1 actually covers T pixels exactly. (without it there would be draw out of bounds error.
D.0, -1.06506, -0.15020534, -.5823998, 0, -1.071623, .063761, .02918, -0.000000063, 0.3061769, 0.105766, -0.001353 Data statement containing Y values for 12 preset locations. Note: The DATAstatement is not impacted by the IF THEN statement.
Color cycling deltas for 9 color cycling modes (9)
Z multipliers for joystick direction lookup (11)
Level default Z multipliers for direction lookup (11)
Special features of this program
GTIA Graphics 10
Atari computers originally shipped with the CTIA chip only capable of displaying a background and up to three foreground colors from a 128 color palette (16 hues each with 8 intensities)
The GTIA chip released shortly after the Atari 400/800 were released offered three new graphics modes:
Graphics 9 provides 16 intensities of any hue
Graphics 10 used by this program uses all of the background (1), foreground (3), player (4), and missile (1) color registers to provide 9 color bitmapped graphics with programmable color registers
Graphics 11 provides 16 hues at any singleintensity
High 4 bits 16 hues, lower 4 bits 8 intensities (low bit is ignored, see image above for 128 color palette of Atari computers).
Atari BASIC has no command to read a color and SETCOLOR is only able to set the background and 3 foreground colors.
The only way to read and write GTIA Graphics mode 10 colors is by using PEEK and POKE respectively to access locations 704 to 712.
77 attract mode timer
The Atari computers have a built in “Attract Mode” that automatically begin cycling colors of the display. The term “Attract Mode” refers to attracting people to interact with the computer in a store, the theory being that the color changing would get peoples attention more than a static display. The Attract Mode was also needed to prevent CRT burn in. When a television displays the same image for a long period of time the phosphor in the display can be permanently marked. The color cycling in the attract mode prevents this both for in-store and home TV’s.
An interactive Atari BASIC application can disable the automatic Attract Mode by frequently resetting the internal Attract Mode timer to 0 with a POKE 77,0
Atari BASIC has IF <expr> THEN <expr>:<expr>… But is has no ELSE, nor ENDIF statements. This means that the remainder of any line after an IF THEN statement will be committed to the conditional statement; all statements after THEN will only be executed if the expression is true.
This is especially limiting in this kind of contest where the program may only have 10 lines. Here are strategies I used to work around this limitation:
Use lookup tables indexed by joystick input to selectively change levels or zoom. See L=L+Q(45+S)in line 7 S is an index derived from joystick 0 direction, some values in the Q data table are 0 which will not change the level (joystick center, up, down), some are +1 (joystick right) to increment the level, and some are +11 (joystick left) which when used with the modulo function below effectively decrement the level.
Use algebraic strategies to weight calculations based on data lookup rather than perform IF THEN conditional statements. This strategy calculates the answer for multiple conditions and then multiplies each result by coefficients of 0 or 1 and sums the results. (A strategy I’ve also used in graphics shaders, and vector processing) See Z=Z*Q(56+S)+Q(L+24)*Q(67+S) in line 7
Use Modulo function (see below) to clamp integer values to ranges
256 for color cycling values C=C-INT(C/256)*256 in line 6
12 locations L=L-INT(L/12)*12 in line 7
9 color cycling modes DC=DC-INT(DC/9)*9 in line 8
Use GOTO at the end of IF THEN to skip over lines, effectively an ELSE. See lines 3 and 6.
Fill ends of conditional statements with DATA which is not impacted by flow control statements like IF THEN or GOTO.
Modulo function
A modulo or modulus function returns the remainder of a division operation. For example MOD(A,B) would return the remainder of A/B, so for A=10, and B=5 would return 0, for A=10 and B=3 would return 1. (limiting to integers for simplicity here)
The example most often used to illustrate modulus math is a clock. You can keep adding hours to a clock and eventually as the hour hand passes midnight it will reset to 0. No matter how many hours you add to a clock, when you read it the hour hand it will always display a value between 0 and 12 hours, which represents the modulus of the total number of hours and 12 which is the same as remainder of the total number of hours divided by 12.
A modulo operator is really handy when programmatically cycling through a limited number of values (like menu options) or performing a math operation and bounding the output value (like a color register) because if the inputs are positive integers then the output will be an integer between 0 and the numerator minus 1.
Atari BASIC lacks binary logic operations AND, OR, XOR, and a modulo function. Binary logic operations can perform fast modulo operations on numbers that are a power of 2 by masking bits out of range. For example, MOD(8,B) is the same as B AND (8-1). The explanation is beyond the scope of this article but it is FAST and really handy.
I’ve always used this technique in Atari BASIC to calculate a modulo operation on positive integers. MODULO=A-INT(A/B)*B Let’s break it down from the inside out.
A/B will be < 1 if B<A A/B will >=1 if B>=A
INT is the integer operator with in Atari BASIC always rounds down to the nearest integer less than the value provided
INT(A/B) will be 0 if B<A INT(A/B) will be a positive integer if B>A. That integer is the number of times B can be subtracted from A
INT(A/B)*B will be 0 if B<A INT(A/B)*B will be a positive integer if B>A. This integer is the greatest multiple of B less than A.
So, A-INT(A/B)*B will subtract from A the portion of A that is from multiples of B, leaving the remainder of A/B
This modulo calculation is used in the program to wrap three values:
The number of locations to 12: L=L-INT(L/12)*12in line 7
the number of color cycling modes to 9: DC=DC-INT(DC/9)*9 in line 8
and the color register to 256 (the size of a byte): C=C-INT(C/256)*256 in line 6
Since this approach works for positive integers, how does the program decrement values? It adds the number of elements minus 1.
Using a clock as an example: If it is 5 o’clock:
If we add 1 hour it will display 6 o’clock
If we add 12 hours the hand will spin all the way around and it will display 5 o’clock: adding the modulus is the same as adding 0
If we add 11 hours the hands will spin almost all the way around but will be short by 1 hour and it will display 4 o’clock: subtracting values are the same as adding the modulus the value, in this case 12-1.
This program uses the third point, subtracting a value is equivalent to adding modulus minus that value in order to implement wrapping adds in location selection, color cycling mode selection, and color cycling itself.
Managing program lookup tables and constants
This program uses a lot of data that needs to be indexed like tables, some is precomputed at initialization and some is predefined. To keep the program as short and simple as possible all the constants are stored in a single array called Q. Line 1 initializes Q by performing precomputation of color table values and READing predefined data from DATA statements. The DATA statements are spread throughout the program but are read in order.
The data is accessed many places in the program by referencing Q(base_index+offset). For example in line 2 CY=Q(L+12) is loading the center y coordinate CY from the Q array at index 12 plus the current location L. If you look in the contents below you will find the offset to the center Y location table is at offset 12 and the table contains 12 elements.
Data array Q contents:
0 (12 elements) Center X coordinates for 12 program locations 12 (12 elements) Center Y coordinates for 12 program locations 24 (12 elements) Default Zoom for 12 program locations 36 (9 elements) Delta Color for each of the 9 color cycling modes 45 (11 elements) Delta Level indexed by joystick 0 direction 56 (11 elements) Z multiplier (0.5,2) indexed by joystick 0 direction 67 (11 elements) Initialization (0,1) Z multiplier indexed by joystick 0 direction 78 (81 elements) Color to plot indexed by number of Mandelbrot calculations
How I developed this program
Atari BASIC automatically expands abbreviations and artificially short line lengths are enforced by the built in editor. The way to work around this limitation is to edit the program externally as a text file and use the ENTER command to read the text file into the interpreter (as opposed to SAVE and LOAD which create and read an Atari BASIC tokenized file). The Atari800Win-PLus emulator allows you to map a folder on the host as device H: (Atari menu, Settings option, Enable H: patch for hard disk access).
The next challenge is that Atari uses 155 (0x9B) as a line terminator and fails to read text files with conventional carriage return (CR, 13, 0x0D) or linefeed (LF, 10, 0x0A) line terminators. To discover this I used the HxD hexadecimal editor to inspect program listings I made in Atari BASIC.
To develop the program, I edited a conventional text version of the program in Notepad++. To test the program I copied the text to MANDELBR.LST, replaced the line endings, saved the file, and used ENTER"H:MANDELBR.LST" in the emulator to load the program. This process was iterated (a lot!).
When the program was complete I took the following steps to create the contest disk image:
I’m working on a followup project composing deep dive videos from 297 color cycling images generated by this program. Atari Chiptune artist Adam Sporka has generously agreed to to provide all the music for these videos. They are turning out awesome, even though they are composited with modern software on modern computers, it’s amazing to see and hear every pixel and sound that was originally generated on Atari computers.
I’ve explored the Mandelbrot Set in a couple previous projects. The Python ASCII Mandelbrot project …
and VT100 terminal Mandelbrot project…
Fast (~2 minutes)
Real-time (~12 minutes)
The source code is included in the YouTube video descriptions. I also wrote a Python VT100 Mandelbrot set explorer (not pictured here) that was configured to match the capabilities of this Atari BASIC program and used to pinpoint the 12 preset locations.
Special Thanks
I’d like to give a shout out to my local makerspace Workshop 88, a like minded talented creative community active in the Chicago suburbs and accessible throughout the world. Be sure to check out the rest of this blog, our YouTube Maker Meeting videos, an all our socials (Facebook, Twitter, MeetUp…). You can join (or support) our community from anywhere in the world on Patreon.
I’d like to like to recognize and thank my father Dennis Williamson, and uncles Don Bahr, Henry Bahr, and Tom Mammoser for fostering my early interest in computers, electronics, and Atari as well as my grandparents Herbert and Virginia Williamson for my first Atari 400 computer and unlimited love, support, and encouragement.
I had a lot of fun writing this program, writing this article, and on the upcoming Atari Mandelbrot Set deep dive video project. In writing the detailed description of the code I discovered a few minor bugs, see if you can find them!
does not
, etc., remains bounded in absolute value. Its definition is credited to
